Subscription TPV Integration

PayU Hosted Checkout integration for TPV (Third Party Verification) Payment Mode supports both Net Banking (NB) and Unified Payment Interface (UPI) payment methods for subscription-based or autopay payments.

Steps to integrate

1. Create Transaction

Create transaction with beneficiary and SI details for autopay

2. Post Parameters

Post transaction parameters to PayU payment gateway

3. Handle Response

Handle and validate response with reverse hash

Customer journey

The customer journey involves three key steps:

Checkout Initiation: Customer begins the payment process on the merchant's checkout page

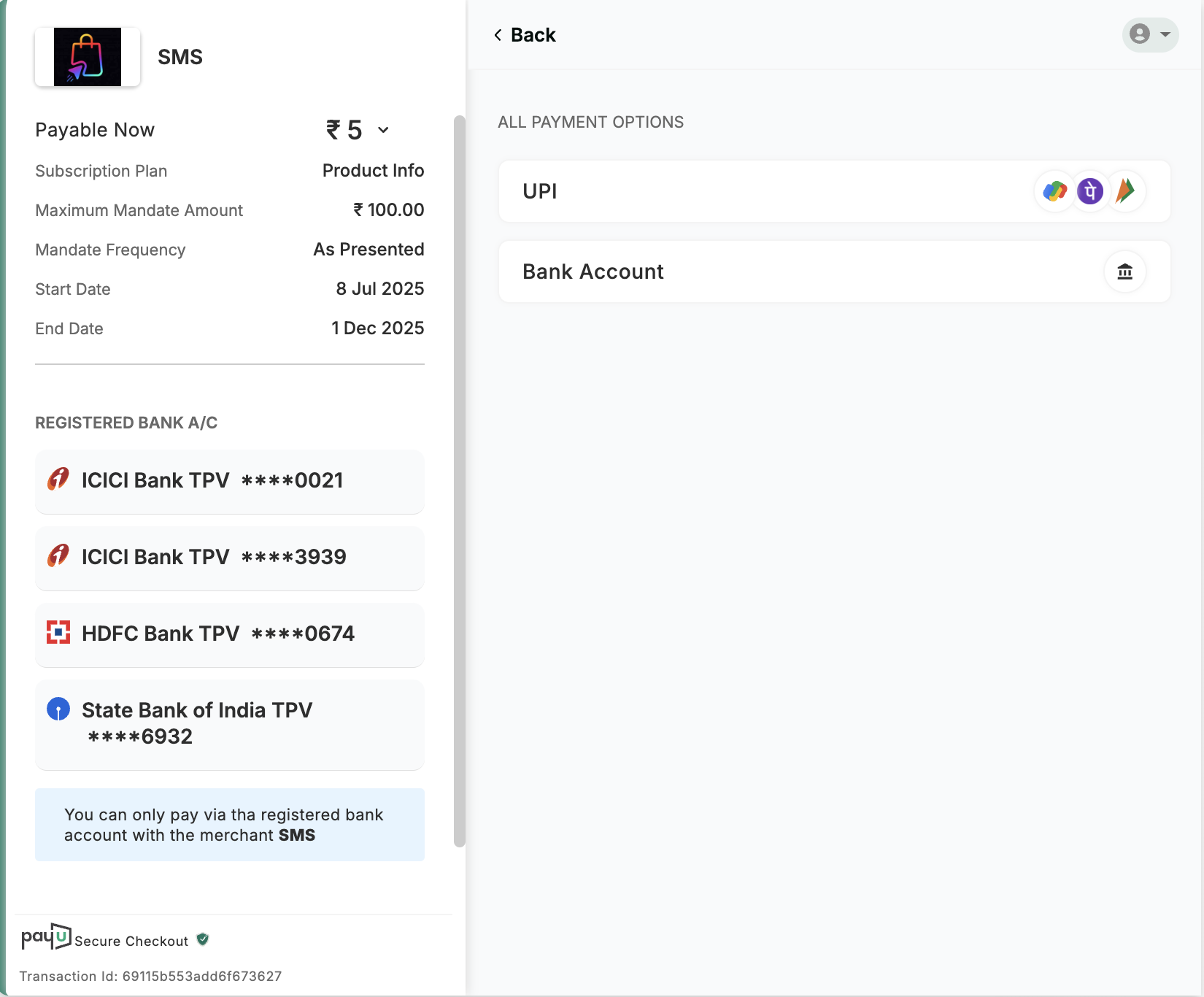

PayU Redirect: Customer is redirected to PayU's hosted checkout page for payment completion

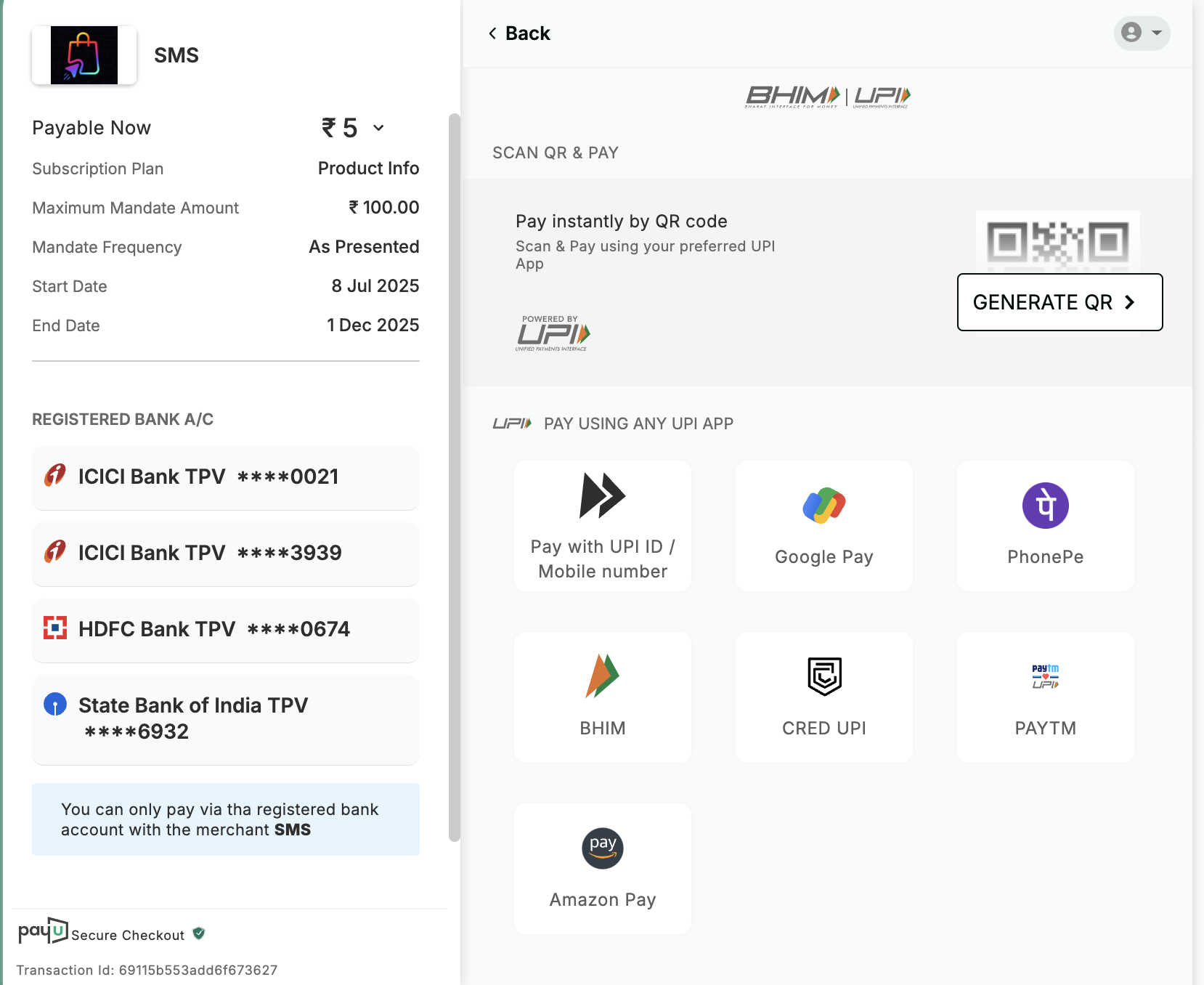

Payment Processing: Customer completes the payment using their preferred payment method (Net Banking or UPI)

Step 1: Create Transaction with Beneficiary and SI Details

Create a transaction request with the required beneficiary details and Standing Instruction (SI) parameters for autopay functionality.

Step 2: Post Transaction Parameters

Submit the transaction parameters to PayU's payment gateway using the appropriate environment URL.

Environment

Environment	URL
Test	`https://test.payu.in/_payment`
Production	`https://secure.payu.in/_payment`

Request parameters

Parameter	Description	Example
`key` mandatory	`String` Merchant key provided by PayU during onboarding	`JPg***r`
`txnid` mandatory	`String` Unique transaction ID for each order	`ypl938459435`
`amount` mandatory	`String` Transaction amount	`100`
`productinfo` mandatory	`String` Product description	`Test Product`
`firstname` mandatory	`String` Customer's first name	`John`
`email` mandatory	`String` Customer's email address	`[email protected]`
`phone` mandatory	`String` Customer's phone number	`9999999999`
`api_version` mandatory	`String` Version of the API	`7`
`beneficiarydetail` mandatory	`JSON Object` Account numbers and associated details for verification	See structure below
`si_details` mandatory	`JSON Object` Standing instruction details for autopay	See structure below
`free_trial` optional	`String` Parameter to set up free trial periods	`1`
`surl` mandatory	`String` Success URL for transaction response	`https://www.yoursurl.com`
`furl` mandatory	`String` Failure URL for transaction response	`https://www.yourfailureurl.com`
`hash` mandatory	`String` SHA512 hash for securing the transaction request. For more information, refer to Hash calculation.	Generated using hash formula

Hash calculation

If UDF parameters are defined in the hash calculation, the same UDF fields must be included in the request sent to PayU.

SHA512(key|txnid|amount|productinfo|firstname|email|udf1|udf2|udf3|udf4|udf5||||||si_details|SALT)

WithOut UDF Parameters.

SHA512(key|txnid|amount|productinfo|firstname|email|||||||||||si_details|SALT)

Replace SALT with the salt value provided during onboarding.

Beneficiary Detail JSON Structure

{"beneficiaryName": "Sachin Tendulkar|Nitin Jaisingh|Somya|Nikita","beneficiaryAccountNumber": "1211450021|002001600674|1234673939|87669286932","beneficiaryAccountType": "SAVINGS|SAVINGS|CURRENT|CURRENT","beneficiaryIfscCode": "ICIC0000046|HDFC0000726|ICIC0000046|SBIN0098292","verificationMode": "DEBIT_CARD|NET_BANKING| |AADHAR"}

Field	Description	Example
beneficiaryName	String List of Beneficiary name separated by pipe symbol (\|). Maximum 4 names.	"Sachin Tendulkar\|Nitin Jaisingh\| Somya\|Nikita"
beneficiaryAccountNumber	String List of account numbers separated by pipe symbol (\|). Maximum 4 accounts.	"002001600674\| 00000031957292212\| 00000035955239352\| 00000035955239352"
beneficiaryAccountType	String List of corresponding account type separated by pipe symbol (\|). Maximum 4 types in the same order as account numbers.	"SAVINGS\|SAVINGS\| CURRENT\|CURRENT"
ifscCode	String List of corresponding IFSC codes separated by pipe symbol (\|). Maximum 4 IFSC codes in the same order as account numbers.	"ICIC0000046\| HDFC0000726\| ICIC0000046\| SBIN0098292"
verificationMode	String List of verification mode separated by pipe symbol (\|). Maximum 4 modes in the same order as account numbers.	"DEBIT_CARD\|NET_BANKING \| \|AADHAR"

Standing Instruction (SI) Details JSON Structure

{
    "billingAmount": "100.00",
    "billingCurrency": "INR",
    "billingCycle": "monthly",
    "paymentStartDate": "2024-01-15",
    "paymentEndDate": "2025-01-15",
    "billingInterval": "1"
}

Sample request

curl --location 'https://test.payu.in/_payment' --data 'key=JPg***r&txnid=ypl938459435&amount=100&productinfo=Test Product&firstname=John&[email protected]&phone=9999999999&beneficiarydetail={"beneficiaryName":"John Doe","beneficiaryAccountNumber":"002001600674","ifscCode":"KTKB0000046"}&si_details={"billingAmount":"100.00","billingCurrency":"INR","billingCycle":"monthly"}&surl=https://www.yoursurl.com&furl=https://www.yourfailureurl.com&hash=generated_hash_value'

Step 3: Handle and Validate Response

Process the response from PayU and perform reverse hash validation to ensure transaction authenticity.

📘
Response Hash Validation (Reverse Hash):
The beneficiarydetail parameter is excluded during reverse hash calculation:
With UDFs:
sha512(SALT|status||||||udf5|udf4|udf3|udf2|udf1|email|firstname|productinfo|amount|txnid|key)
Without UDFs:
sha512(SALT|status|||||||||||email|firstname|productinfo|amount|txnid|key)

Response parameters

Parameter	Description	Example
`mihpayid`	Unique reference number created for the transaction on PayU's system	`"99995401486671"`
`merchantid`	Merchant's unique ID	`"12345"`
`txnid`	Transaction ID provided in the request	`"ypl938459435"`
`status`	Status of the transaction	`"success"`, `"failure"`, `"pending"`
`amount`	Transaction amount post adjustments	`"100.00"`
`bankcode`	Bank code used in the transaction	`"SBITPV"`, `"UPITPV"`
`error`	Error code indicating issues with the transaction	`"E000"`
`error_Message`	Description of any errors	`"Transaction failed"`
`payment_source`	Indicates the payment source	`"payu"`
`hash`	Hash provided in the response for validation	Generated hash string

Net Banking transaction

Array(
    [mihpayid] => 99995401486671
    [status] => success
    [key] => travelibibo
    [txnid] => 4245248agh5519827ec
    [amount] => 100.00
    [bankcode] => SBITPV
    [hash] => e9272f99eace9f6e0a52c871cc0226ac...
    [payment_source] => payu
)

UPI transaction

Array(
    [mihpayid] => 99995401486672
    [status] => success
    [key] => merchant_key
    [txnid] => upi_txn_12345
    [amount] => 100.00
    [bankcode] => UPITPV
    [hash] => d8374b99face8e6e0b53d981dd0337bd...
    [payment_source] => payu
)

Sample webhook response

Net Banking webhook:

mihpayid=99995401486671&mode=NB&status=success&key=merchant_key&txnid=4245248agh5519827ec&amount=100.00&hash=validation_hash

UPI webhook:

amount=100.00&PG_TYPE=UPI-COLLECT&payment_source=payu&bankcode=UPITPV&mihpayid=99995401486672&status=success&hash=validation_hash
