UPI Intent - Non SDK Flow

The Non SDK implementation for finding the UPI supported application in the customer's device. The following steps will help you first find the application installed in the customer's device supporting smart intent.

You can use PayU APIs to initiate the transaction and get the Intent payment URI which includes payment details required for the PSP app customer will select for payment. After completion of payment by the customer, you can verify the transaction using the Verify Payment API. The following steps are required to enable Smart Intent-based UPI payment in your application.

❗️
Important UPI Integration Changes as per NPCI Mandate on UPI Collect Disablement
Recommended: For easier integration, merchants can use PayU SDKs for Android and iOS, which have the Smart Intent implementation built-in:

Android UPI SDK - Supports Collect, Intent, and In-App flows with Smart Intent

Android CheckoutPro SDK - Complete checkout solution with Smart Intent

iOS UPI SDK - Supports Intent and Collect payments

iOS CheckoutPro SDK - Complete checkout solution for iOS

Smart Intent Flow

📘
Notes:

Smart Intent flow works only on Android device.

As per NPCI mandate, Pay by any UPI App option must be shown by all the merchants in their app on all Android devices (app/m-web/webview), Use the generic deeplink, without specific packageName to trigger the Pay by any UPI app.

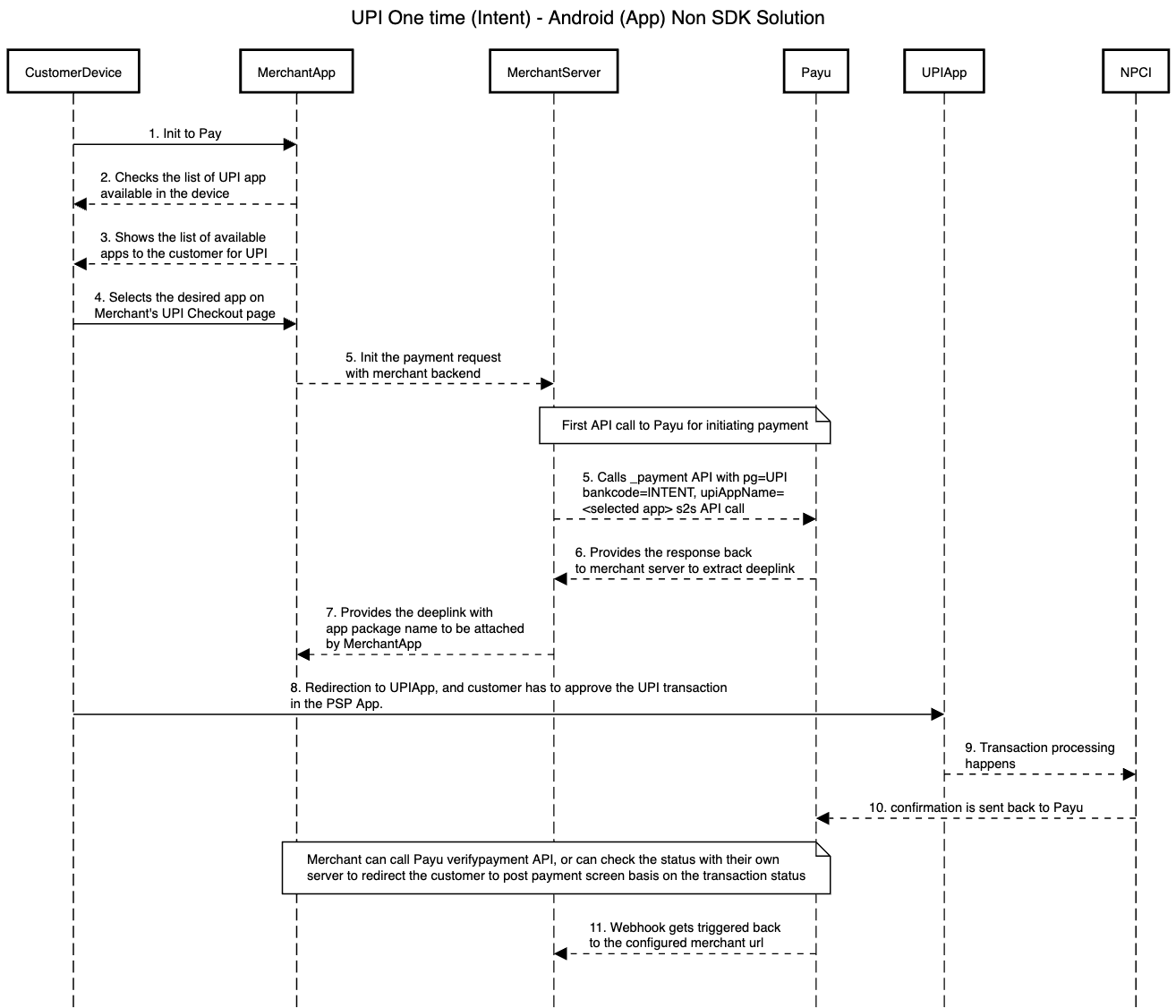

Workflow

Steps to integrate

Update Manifest File [One-Time]

Add package ids in your apps manifest file to allow your application to access apps installed on the customer's device. This is required for Android 11 and above.

 <queries>
        <package android:name="in.amazon.mShop.android.shopping"/>
        <package android:name="com.upi.axispay"/>
        <package android:name="com.axis.mobile"/>
        <package android:name="com.fisglobal.bandhanupi.app"/>
        <package android:name="com.bankofbaroda.upi"/>
        <package android:name="in.org.npci.upiapp"/>
        <package android:name="com.canarabank.mobility"/>
        <package android:name="com.citiuat"/>
        <package android:name="com.dbs.in.digitalbank"/>
        <package android:name="com.olive.dcb.upi"/>
        <package android:name="com.finopaytech.bpayfino"/>
        <package android:name="com.freecharge.android"/>
        <package android:name="com.google.android.apps.nbu.paisa.user"/>
        <package android:name="com.snapwork.hdfc"/>
        <package android:name="com.mgs.hsbcupi"/>
        <package android:name="com.csam.icici.bank.imobile"/>
        <package android:name="com.icicibank.pockets"/>
        <package android:name="com.euronet.iobupi"/>
        <package android:name="com.mgs.induspsp"/>
        <package android:name="com.fss.jnkpsp"/>
        <package android:name="com.jio.myjio"/>
        <package android:name="com.mycompany.kvb"/>
        <package android:name="com.kvb.mobilebanking"/>
        <package android:name="com.lcode.smartz"/>
        <package android:name="com.msf.kbank.mobile"/>
        <package android:name="com.upi.federalbank.org.lotza"/>
        <package android:name="com.infrasofttech.mahaupi"/>
        <package android:name="com.mipay.in.wallet"/>
        <package android:name="com.myairtelapp"/>
        <package android:name="com.mobikwik_new"/>
        <package android:name="com.onymy.paybee.prod"/>
        <package android:name="net.one97.paytm"/>
        <package android:name="com.phonepe.app"/>
        <package android:name="com.Version1"/>
        <package android:name="com.samsung.android.spay"/>
        <package android:name="com.sbi.upi"/>
        <package android:name="com.SIBMobile"/>
        <package android:name="com.truecaller"/>
        <package android:name="com.infrasoft.uboi"/>
        <package android:name="com.lcode.ucoupi"/>
        <package android:name="com.YesBank"/>
        <package android:name="com.dreamplug.androidapp"/>
        <package android:name="money.bullet"/>
    </queries>

Step 1: Fetch the List of UPI and Smart Intent Supported Apps

You need to get the list of UPI and smart intent supported applications installed in the device.

private fun getSmartIntentUPIApps(context: Context?):ArrayList<HashMap<String,String>>?{
      val upiApps = ArrayList<HashMap<String, String>>()
      if (context == null)
          return null

      val intent = Intent()
      intent.data = Uri.parse("upi://pay")
      val activityList = context.packageManager.queryIntentActivities(intent, PackageManager.MATCH_DEFAULT_ONLY)
      for (resolveInfo in activityList){
          var packageInfo: PackageInfo? = null
          try {
              packageInfo = context.packageManager
                  .getPackageInfo(resolveInfo.activityInfo.packageName, 0)
              val name =
                  context.packageManager.getApplicationLabel(packageInfo.applicationInfo) as String
            val appInfo = HashMap<String, String?>()
              appInfo["bankName"] = name ?: "NA"
              appInfo["packageName"] = packageInfo.packageName
              upiApps.add(appInfo)
          } catch (e: PackageManager.NameNotFoundException) {
              e.printStackTrace()
              return upiApps
          }
      }
      return UPI apps
  }
  /* to get icon of psp app*/
  fun getUpiAppBitmap(context: Context?, packageName: String): Bitmap? {

      var upiAppBitmap: Bitmap? = null
      if (context == null)
          return upiAppBitmap
      upiAppBitmap = context.packageManager.getApplicationIcon(packageName).toBitmap()
      return upiAppBitmap
  }

Step 2: Get Intent URI

Use the _payment API to get Intent URI and transaction details for the UPI app selected by the customer. For more information, refer to UPI Intent with S2S Integration.

Request Parameters

Parameter	Description	Example
`key` `mandatory`	`String` Merchant key provided by PayU during onboarding.	JPg****f
`txnid` `mandatory`	`String` The transaction ID is a reference number for a specific order that is generated by the merchant.	ypl938459435
`amount` `mandatory`	`String` The payment amount for the transaction.	10.00
`productinfo` `mandatory`	`String` A brief description of the product.	iPhone
`firstname` `mandatory`	`String` The first name of the customer.	Ashish
`lastname` `mandatory`	`String` The last name of the customer.	Kumar
`email` `mandatory`	`String` The email address of the customer.	[email protected]
`phone` `mandatory`	`String` The phone number of the customer.
`address1` `optional but recommended for higher approval rate`	`String` The first line of the billing address. H.No- 17, Block C, Kalyan Bldg, Khardilkar Road, Mumbai Note: This information is helpful when it comes to issues related to fraud detection and chargebacks. Hence, it is must to provide the correct information.	34 Saikripa-Estate, Tilak Nagar
`address2` `optional but recommended for higher approval rate`	`String` The second line of the billing address.
`city` `optional but recommended for higher approval rate`	`String` The city where your customer resides as part of the billing address.	Mumbai
`state` `optional but recommended for higher approval rate`	`String` The state where your customer resides as part of the billing address.	Maharashtra
`country` `optional but recommended for higher approval rate`	`String` The country where your customer resides.	India
`zipcode` `mandatory`	`String` Billing address zip code is mandatory for the cardless EMI option. Character Limit-20	400004
`pg` `mandatory for seamless/s2s flow`	`String` It defines the payment category and post UPI.	UPI
`bankcode` `mandatory for seamless/s2s flow`	`String` Each payment option is identified with a unique bank code at PayU. For UPI Autopay, post UPI.	UPI
`surl` `mandatory`	`String` The success URL, which is the page PayU will redirect to if the transaction is successful.
`furl` `mandatory`	`String` The Failure URL, which is the page PayU will redirect to if the transaction is failed.
vpa `conditional`	`String` Customer's VPA handle. Mandatory for UPI Collect flow.	`customer@upi`
si `mandatory`	`String` Signifies successful consent taken from the user. Must be `1` for subscription setup.	`1`
si_details `mandatory`	`JSON String` JSON object containing mandate details (billingAmount, billingCurrency, billingCycle, etc.). Refer to si_details JSON Object below.	See si_details accordion
txn_s2s_flow `conditional`	`Integer` Parameter to enable S2S flow. Must be `4` for Legacy Decoupled flow (UPI Intent).	`4`
s2s_client_ip `conditional`	`String` Source IP of the customer. Required for UPI Intent flow.	`10.200.12.12`
s2s_device_info `conditional`	`String` Customer agent's device information. Required for UPI Intent flow.	`Mozilla/5.0 (Windows NT 10.0; Win64; x64)`
`udf1` `mandatory if AD bank request this detail`	`String` This parameter must contain the Buyer's PAN and date of birth in the following format (separated by two pipe characters): Buyer's PAN\\|\\|Buyer'sDOB	AAAPZ1234C\\|\\|22/08/1972
`udf3` `mandatory if AD bank request this detail`	`String` This parameter must contain the invoice ID of the transaction (generated by the merchant) and merchant name in the following format (separated by two pipe characters): Invoice ID\\|\\|MerchantName	INV-123_1231\\|\\|MerchantName
buyer_type_business `optional in case of B2B transaction for cross-border payments`	`Binary` To be sent as "1" in case the buyer is a business. In case of individual buyers, it can be skipped. Default is "0". Note: This will be included in hash if posted (covered in next section	1

Sample Request

curl --location 'https://test.payu.in/_payment' \
--header 'Content-Type: application/x-www-form-urlencoded' \
--data-urlencode 'key=PRiQvJ' \
--data-urlencode 'txnid=my_order_991' \
--data-urlencode 'amount=1' \
--data-urlencode 'productinfo=my_order_991' \
--data-urlencode 'email=' \
--data-urlencode 'phone=9368252248' \
--data-urlencode 'txn_s2s_flow=4' \
--data-urlencode 'hash=||||||ABCDE1234F||1990-01-01||INV123456||||||' \
--data-urlencode 'surl=https://test.payu.in/admin/test_response' \
--data-urlencode 'furl=https://test.payu.in/admin/test_response' \
--data-urlencode 'udf1=buyer'\''s DOB' \
--data-urlencode 'udf2=' \
--data-urlencode 'udf3=buyer'\''s PAN' \
--data-urlencode 'udf4=' \
--data-urlencode 'udf5=invoice number' \
--data-urlencode 's2s_client_ip=10.200.12.12' \
--data-urlencode 's2s_device_info=Mozilla/5.0 (Windows NT 10.0; Win64; x64) PayU-API-Test/1.0' \
--data-urlencode 'firstname=' \
--data-urlencode 'lastname=kr' \
--data-urlencode 'address1=308,third floor' \
--data-urlencode 'address2=testing' \
--data-urlencode 'city=Gurugram' \
--data-urlencode 'state=UP' \
--data-urlencode 'country=India' \
--data-urlencode 'zipcode=122018' \
--data-urlencode 'pg=UPI' \
--data-urlencode 'bankcode=INTENT' \
--data-urlencode 'upiAppName=gpay/phonepe/paytm/qr/amazonpay' \
--data-urlencode 'udf_params={"udf7":"asdf","udf8":"12"}' \
--data-urlencode 'buyer_type_business=1'

Step 3: Retrieve Deeplink(uriIntentData) from the response,

If metaData.unmappedStatus = pending, then get the result.intentURIData and add the prefix upi://pay?to make it to create a fully qualified deeplink to trigger the UPI App.

{
    "metaData": {
        "message": null,
        "referenceId": "c99a6455b3e0dc5cd7167ab8c8cc10d2fa153cb509e3f64c6cd0ed9c5b64a8c9",
        "statusCode": null,
        "txnId": "my_order_26075",
        "txnStatus": "pending",
        "unmappedStatus": "pending"
    },
    "result": {
        "paymentId": "403993715535965242",
        "merchantName": "Sudhanshu",
        "merchantVpa": "payutest@hdfcbank",
        "amount": "1.00",
        "intentURIData": "pa=payutest@hdfcbank&pn=Kumar&tr=403993715535965242&tid=PPPL403993715535965242080126220900&am=1.00&cu=INR&tn=UPIIntent",
        "acsTemplate": "PGh0bWw+PGJvZHk+PGZvcm0gbmFtZT0icGF5bWVudF9wb3N0IiBpZD0icGF5bWVudF9wb3N0IiBhY3Rpb249Imh0dHBzOi8vdGVzdC5wYXl1LmluL2M5OWE2NDU1YjNlMGRjNWNkNzE2N2FiOGM4Y2MxMGQyYzgzYTk5NmFhNDhiYTk4MmZjMGQ4MTI1MGY1ODgxZjMvaW50ZW50U2VhbWxlc3NIYW5kbGVyLnBocCIgbWV0aG9kPSJwb3N0Ij48aW5wdXQgdHlwZT0iaGlkZGVuIiBuYW1lPSJ0b2tlbiIgdmFsdWU9IjhERDNFRUFFLUI5NTktQzY1RS03MDczLTYzQTNGQUUxMjZGRiI+PGlucHV0IHR5cGU9ImhpZGRlbiIgbmFtZT0iYW1vdW50IiB2YWx1ZT0iMS4wMCI+PGlucHV0IHR5cGU9ImhpZGRlbiIgbmFtZT0ibWlocGF5aWQiIHZhbHVlPSJjOTlhNjQ1NWIzZTBkYzVjZDcxNjdhYjhjOGNjMTBkMmZhMTUzY2I1MDllM2Y2NGM2Y2QwZWQ5YzViNjRhOGM5Ij48aW5wdXQgdHlwZT0iaGlkZGVuIiBuYW1lPSJkaXNhYmxlSW50ZW50U2VhbWxlc3NGYWlsdXJlIiB2YWx1ZT0iMCI+PGlucHV0IHR5cGU9ImhpZGRlbiIgbmFtZT0icGF5ZWVWcGEiIHZhbHVlPSJwYXl1dGVzdEBoZGZjYmFuayI+PGlucHV0IHR5cGU9ImhpZGRlbiIgbmFtZT0icGF5ZWVOYW1lIiB2YWx1ZT0iU3VkaGFuc2h1Ij48aW5wdXQgdHlwZT0iaGlkZGVuIiBuYW1lPSJhZGRpdGlvbmFsQ2hhcmdlcyIgdmFsdWU9IjAiPjxpbnB1dCB0eXBlPSJoaWRkZW4iIG5hbWU9InRyYW5zYWN0aW9uRmVlIiB2YWx1ZT0iMS4wMCI+PC9mb3JtPjxzY3JpcHQgdHlwZT0ndGV4dC9qYXZhc2NyaXB0Jz4KICAgICAgICAgICAgICAgICAgICAgICAgICAgIHdpbmRvdy5vbmxvYWQ9ZnVuY3Rpb24oKXsKICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICBkb2N1bWVudC5mb3Jtc1sncGF5bWVudF9wb3N0J10uc3VibWl0KCk7CiAgICAgICAgICAgICAgICAgICAgICAgICAgICB9CiAgICAgICAgICAgICAgICAgICAgICAgIDwvc2NyaXB0PjwvYm9keT48L2h0bWw+",
        "otpPostUrl": "https://test.payu.in/ResponseHandler.php"
    }
}

Step 4: Set the Package Name

Set the packageName as per the app selected by the customer on your checkout page. and start the activity.

fun makePayment(packageName: String,mActivity: Activity,intentUri:String) {
      val i = Intent()
      i.setPackage(packageName)
      i.action = Intent.ACTION_VIEW
      i.data = Uri.parse("upi://pay" + intentUri)
      if (null != mActivity && !mActivity.isFinishing() && !mActivity.isDestroyed()) {
          mActivity.startActivityForResult(i, 101)
      }
  }

Step 5: Handle the response

Once the user completes the payment the UPI app will be closed, and then handle the response onActivityResult.

override fun onActivityResult(requestCode: Int, resultCode: Int, data: Intent?) {
      super.onActivityResult(requestCode, resultCode, data)
      if (requestCode == 101) {
          data?.getStringExtra("Status")?.let { Log.d("result", it) }
          data?.getStringExtra("response")?.let { Log.d("response", it) }
          //get Status
          //if Status == Success
          // Call Verify Payemnt//
      }
}

Step 6: Verify the payment

Upon receiving the response, PayU recommends you performing a reconciliation step to validate all transaction details. You can verify your payments using either of the following methods:

Configure the webhooks to monitor the status of payments.
Webhooks enable a server to communicate with another server by sending an HTTP callback or message.
These callbacks are triggered by specific events or instances and operate at the server-to-server (S2S) level.

👉 For more details, refer to Webhooks for Payments.

Specific Intent Flow

📘
Notes: Specific Intent flow works with m-web, Webview, Android or iOS apps. As per NPCI mandate, Pay by any UPI App option must be shown by all the merchants in their app on all Android devices (app/m-web/webview), Use the generic deeplink, without specific packageName to trigger the Pay by any UPI app.

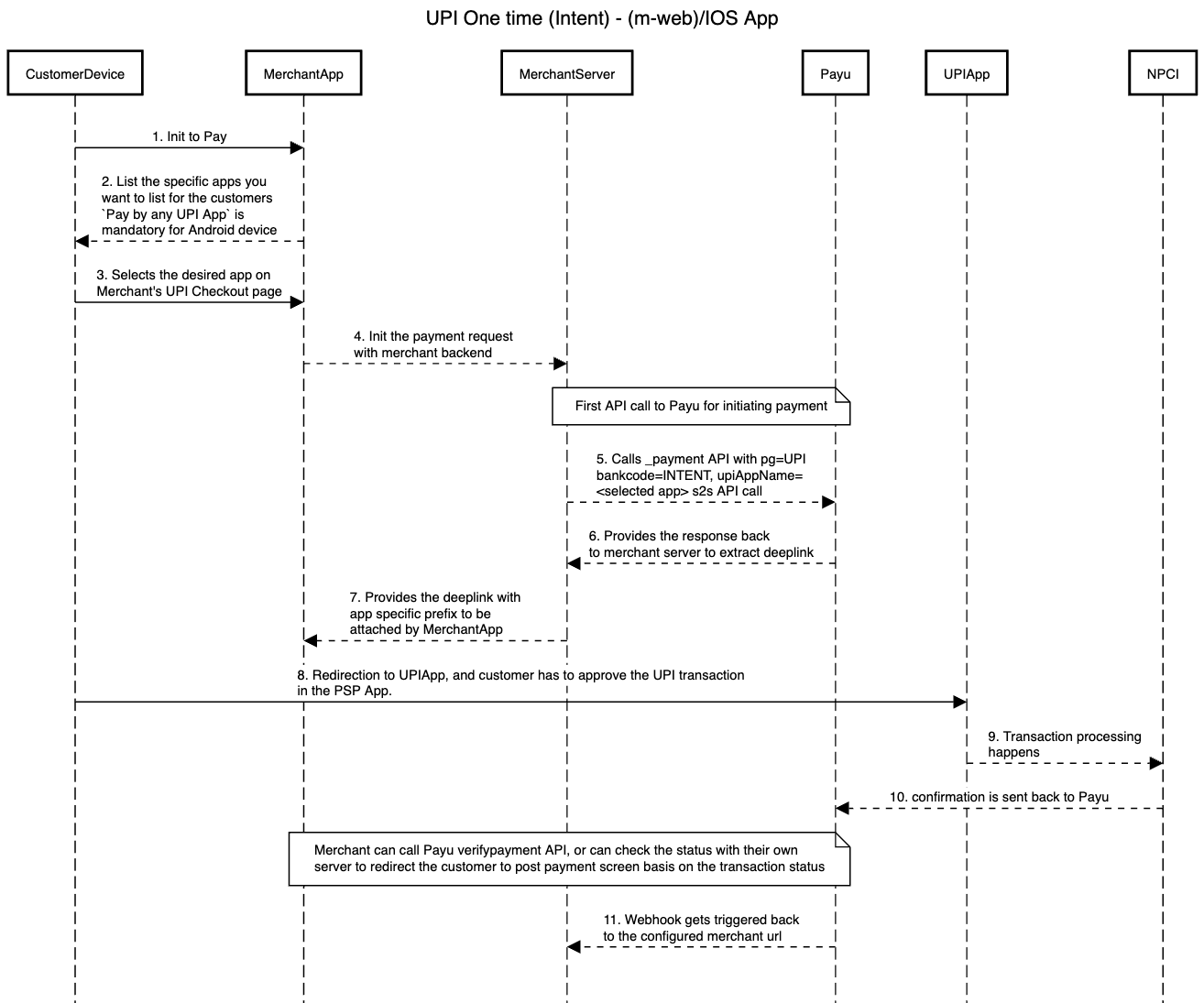

Workflow

Steps to Integrate

Step 1: Fetch the List of UPI and Smart Intent Supported Apps

You need to get the list of UPI and smart intent supported applications installed in the device.

private fun getSmartIntentUPIApps(context: Context?):ArrayList<HashMap<String,String>>?{
      val upiApps = ArrayList<HashMap<String, String>>()
      if (context == null)
          return null

      val intent = Intent()
      intent.data = Uri.parse("upi://pay")
      val activityList = context.packageManager.queryIntentActivities(intent, PackageManager.MATCH_DEFAULT_ONLY)
      for (resolveInfo in activityList){
          var packageInfo: PackageInfo? = null
          try {
              packageInfo = context.packageManager
                  .getPackageInfo(resolveInfo.activityInfo.packageName, 0)
              val name =
                  context.packageManager.getApplicationLabel(packageInfo.applicationInfo) as String
            val appInfo = HashMap<String, String?>()
              appInfo["bankName"] = name ?: "NA"
              appInfo["packageName"] = packageInfo.packageName
              upiApps.add(appInfo)
          } catch (e: PackageManager.NameNotFoundException) {
              e.printStackTrace()
              return upiApps
          }
      }
      return UPI apps
  }
  /* to get icon of psp app*/
  fun getUpiAppBitmap(context: Context?, packageName: String): Bitmap? {

      var upiAppBitmap: Bitmap? = null
      if (context == null)
          return upiAppBitmap
      upiAppBitmap = context.packageManager.getApplicationIcon(packageName).toBitmap()
      return upiAppBitmap
  }

Step 2: Get Intent URI

Use the _payment API to get Intent URI and transaction details for the UPI app selected by the customer. For more information, refer to UPI Intent with S2S Integration.

Request Parameters

Parameter	Description	Example
`key` `mandatory`	`String` Merchant key provided by PayU during onboarding.	JPg****f
`txnid` `mandatory`	`String` The transaction ID is a reference number for a specific order that is generated by the merchant.	ypl938459435
`amount` `mandatory`	`String` The payment amount for the transaction.	10.00
`productinfo` `mandatory`	`String` A brief description of the product.	iPhone
`firstname` `mandatory`	`String` The first name of the customer.	Ashish
`lastname` `mandatory`	`String` The last name of the customer.	Kumar
`email` `mandatory`	`String` The email address of the customer.	[email protected]
`phone` `mandatory`	`String` The phone number of the customer.
`address1` `optional but recommended for higher approval rate`	`String` The first line of the billing address. H.No- 17, Block C, Kalyan Bldg, Khardilkar Road, Mumbai Note: This information is helpful when it comes to issues related to fraud detection and chargebacks. Hence, it is must to provide the correct information.	34 Saikripa-Estate, Tilak Nagar
`address2` `optional but recommended for higher approval rate`	`String` The second line of the billing address.
`city` `optional but recommended for higher approval rate`	`String` The city where your customer resides as part of the billing address.	Mumbai
`state` `optional but recommended for higher approval rate`	`String` The state where your customer resides as part of the billing address.	Maharashtra
`country` `optional but recommended for higher approval rate`	`String` The country where your customer resides.	India
`zipcode` `mandatory`	`String` Billing address zip code is mandatory for the cardless EMI option. Character Limit-20	400004
`pg` `mandatory for seamless/s2s flow`	`String` It defines the payment category and post UPI.	UPI
`bankcode` `mandatory for seamless/s2s flow`	`String` Each payment option is identified with a unique bank code at PayU. For UPI Autopay, post UPI.	UPI
`surl` `mandatory`	`String` The success URL, which is the page PayU will redirect to if the transaction is successful.
`furl` `mandatory`	`String` The Failure URL, which is the page PayU will redirect to if the transaction is failed.
vpa `conditional`	`String` Customer's VPA handle. Mandatory for UPI Collect flow.	`customer@upi`
si `mandatory`	`String` Signifies successful consent taken from the user. Must be `1` for subscription setup.	`1`
si_details `mandatory`	`JSON String` JSON object containing mandate details (billingAmount, billingCurrency, billingCycle, etc.). Refer to si_details JSON Object below.	See si_details accordion
txn_s2s_flow `conditional`	`Integer` Parameter to enable S2S flow. Must be `4` for Legacy Decoupled flow (UPI Intent).	`4`
s2s_client_ip `conditional`	`String` Source IP of the customer. Required for UPI Intent flow.	`10.200.12.12`
s2s_device_info `conditional`	`String` Customer agent's device information. Required for UPI Intent flow.	`Mozilla/5.0 (Windows NT 10.0; Win64; x64)`
`udf1` `mandatory if AD bank request this detail`	`String` This parameter must contain the Buyer's PAN and date of birth in the following format (separated by two pipe characters): Buyer's PAN\\|\\|Buyer'sDOB	AAAPZ1234C\\|\\|22/08/1972
`udf3` `mandatory if AD bank request this detail`	`String` This parameter must contain the invoice ID of the transaction (generated by the merchant) and merchant name in the following format (separated by two pipe characters): Invoice ID\\|\\|MerchantName	INV-123_1231\\|\\|MerchantName
buyer_type_business `optional in case of B2B transaction for cross-border payments`	`Binary` To be sent as "1" in case the buyer is a business. In case of individual buyers, it can be skipped. Default is "0". Note: This will be included in hash if posted (covered in next section	1

Sample Request

curl --location 'https://test.payu.in/_payment' \
--header 'Content-Type: application/x-www-form-urlencoded' \
--data-urlencode 'key=PRiQvJ' \
--data-urlencode 'txnid=my_order_991' \
--data-urlencode 'amount=1' \
--data-urlencode 'productinfo=my_order_991' \
--data-urlencode 'email=' \
--data-urlencode 'phone=9368252248' \
--data-urlencode 'txn_s2s_flow=4' \
--data-urlencode 'hash=||||||ABCDE1234F||1990-01-01||INV123456||||||' \
--data-urlencode 'surl=https://test.payu.in/admin/test_response' \
--data-urlencode 'furl=https://test.payu.in/admin/test_response' \
--data-urlencode 'udf1=buyer'\''s DOB' \
--data-urlencode 'udf2=' \
--data-urlencode 'udf3=buyer'\''s PAN' \
--data-urlencode 'udf4=' \
--data-urlencode 'udf5=invoice number' \
--data-urlencode 's2s_client_ip=10.200.12.12' \
--data-urlencode 's2s_device_info=Mozilla/5.0 (Windows NT 10.0; Win64; x64) PayU-API-Test/1.0' \
--data-urlencode 'firstname=' \
--data-urlencode 'lastname=kr' \
--data-urlencode 'address1=308,third floor' \
--data-urlencode 'address2=testing' \
--data-urlencode 'city=Gurugram' \
--data-urlencode 'state=UP' \
--data-urlencode 'country=India' \
--data-urlencode 'zipcode=122018' \
--data-urlencode 'pg=UPI' \
--data-urlencode 'bankcode=INTENT' \
--data-urlencode 'upiAppName=gpay/phonepe/paytm/qr/amazonpay' \
--data-urlencode 'udf_params={"udf7":"asdf","udf8":"12"}' \
--data-urlencode 'buyer_type_business=1'

Step 3: Retrieve Deeplink(uriIntentData) from the response,

If metaData.unmappedStatus = pending, then get the result.intentURIData and add the prefix upi://pay?to make it to create a fully qualified deeplink to trigger the UPI App.

{
  "metaData": {
      "message": null,
      "referenceId": "c99a6455b3e0dc5cd7167ab8c8cc10d2fa153cb509e3f64c6cd0ed9c5b64a8c9",
      "statusCode": null,
      "txnId": "my_order_26075",
      "txnStatus": "pending",
      "unmappedStatus": "pending"
  },
  "result": {
      "paymentId": "403993715535965242",
      "merchantName": "Sudhanshu",
      "merchantVpa": "payutest@hdfcbank",
      "amount": "1.00",
      "intentURIData": "pa=payutest@hdfcbank&pn=Kumar&tr=403993715535965242&tid=PPPL403993715535965242080126220900&am=1.00&cu=INR&tn=UPIIntent",
      "acsTemplate": "PGh0bWw+PGJvZHk+PGZvcm0gbmFtZT0icGF5bWVudF9wb3N0IiBpZD0icGF5bWVudF9wb3N0IiBhY3Rpb249Imh0dHBzOi8vdGVzdC5wYXl1LmluL2M5OWE2NDU1YjNlMGRjNWNkNzE2N2FiOGM4Y2MxMGQyYzgzYTk5NmFhNDhiYTk4MmZjMGQ4MTI1MGY1ODgxZjMvaW50ZW50U2VhbWxlc3NIYW5kbGVyLnBocCIgbWV0aG9kPSJwb3N0Ij48aW5wdXQgdHlwZT0iaGlkZGVuIiBuYW1lPSJ0b2tlbiIgdmFsdWU9IjhERDNFRUFFLUI5NTktQzY1RS03MDczLTYzQTNGQUUxMjZGRiI+PGlucHV0IHR5cGU9ImhpZGRlbiIgbmFtZT0iYW1vdW50IiB2YWx1ZT0iMS4wMCI+PGlucHV0IHR5cGU9ImhpZGRlbiIgbmFtZT0ibWlocGF5aWQiIHZhbHVlPSJjOTlhNjQ1NWIzZTBkYzVjZDcxNjdhYjhjOGNjMTBkMmZhMTUzY2I1MDllM2Y2NGM2Y2QwZWQ5YzViNjRhOGM5Ij48aW5wdXQgdHlwZT0iaGlkZGVuIiBuYW1lPSJkaXNhYmxlSW50ZW50U2VhbWxlc3NGYWlsdXJlIiB2YWx1ZT0iMCI+PGlucHV0IHR5cGU9ImhpZGRlbiIgbmFtZT0icGF5ZWVWcGEiIHZhbHVlPSJwYXl1dGVzdEBoZGZjYmFuayI+PGlucHV0IHR5cGU9ImhpZGRlbiIgbmFtZT0icGF5ZWVOYW1lIiB2YWx1ZT0iU3VkaGFuc2h1Ij48aW5wdXQgdHlwZT0iaGlkZGVuIiBuYW1lPSJhZGRpdGlvbmFsQ2hhcmdlcyIgdmFsdWU9IjAiPjxpbnB1dCB0eXBlPSJoaWRkZW4iIG5hbWU9InRyYW5zYWN0aW9uRmVlIiB2YWx1ZT0iMS4wMCI+PC9mb3JtPjxzY3JpcHQgdHlwZT0ndGV4dC9qYXZhc2NyaXB0Jz4KICAgICAgICAgICAgICAgICAgICAgICAgICAgIHdpbmRvdy5vbmxvYWQ9ZnVuY3Rpb24oKXsKICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICBkb2N1bWVudC5mb3Jtc1sncGF5bWVudF9wb3N0J10uc3VibWl0KCk7CiAgICAgICAgICAgICAgICAgICAgICAgICAgICB9CiAgICAgICAgICAgICAgICAgICAgICAgIDwvc2NyaXB0PjwvYm9keT48L2h0bWw+",
      "otpPostUrl": "https://test.payu.in/ResponseHandler.php"
  }
}

Step 4: Add the prefix

Add the prefix as per the Android/IOS to it to create a fully qualified deeplink to trigger the UPI App.

Android Specific Intent prefix

androidPrefix="intent://pay?"
intentUriData="pa=myntra.payu@axisbank&pn=NIMIT%20BHATIA&tr=26156866365&tid=PPPL2615686636525112512114769254fab&am=10.00&cu=INR&tn=UPIIntent"
suffix = "#Intent;scheme=upi;package=<package name>;"
suffixForFallback="S.browser_fallback_url=<base64decoded result.acsTemplate can be used to redirect to Payu for UPI fallback>;end"
//use androidPrefix+intentUriData+suffix+suffixForFallback to trigger the App in specific deeplink integration

IOS Specific Intent prefix (Limited availability)

phonepe = phonepe://upi/pay?
paytm = paytm://upi/pay?
googlepay = gpay://upi/pay?
bhim = bhim://upi/pay?
credpay = credpay://upi/pay?

Step 5: Verify the payment

Upon receiving the response, PayU recommends you performing a reconciliation step to validate all transaction details. You can verify your payments using either of the following methods:

👉 For more details, refer to Webhooks for Payments.

UPI Online QR

This section describes how to integrate UPI Online QR which will help you generate QR on your eCommerce website so that your customers can make payment from any UPI app.

Workflow

Steps to Integrate

Step 1: Initiate Payment

Use the _payment API to collect payment. For more information, refer to UPI Intent with S2S Integration.

Request Parameters

Parameter	Description	Example
`key` `mandatory`	`String` Merchant key provided by PayU during onboarding.	JPg****f
`txnid` `mandatory`	`String` The transaction ID is a reference number for a specific order that is generated by the merchant.	ypl938459435
`amount` `mandatory`	`String` The payment amount for the transaction.	10.00
`productinfo` `mandatory`	`String` A brief description of the product.	iPhone
`firstname` `mandatory`	`String` The first name of the customer.	Ashish
`lastname` `mandatory`	`String` The last name of the customer.	Kumar
`email` `mandatory`	`String` The email address of the customer.	[email protected]
`phone` `mandatory`	`String` The phone number of the customer.
`address1` `optional but recommended for higher approval rate`	`String` The first line of the billing address. H.No- 17, Block C, Kalyan Bldg, Khardilkar Road, Mumbai Note: This information is helpful when it comes to issues related to fraud detection and chargebacks. Hence, it is must to provide the correct information.	34 Saikripa-Estate, Tilak Nagar
`address2` `optional but recommended for higher approval rate`	`String` The second line of the billing address.
`city` `optional but recommended for higher approval rate`	`String` The city where your customer resides as part of the billing address.	Mumbai
`state` `optional but recommended for higher approval rate`	`String` The state where your customer resides as part of the billing address.	Maharashtra
`country` `optional but recommended for higher approval rate`	`String` The country where your customer resides.	India
`zipcode` `mandatory`	`String` Billing address zip code is mandatory for the cardless EMI option. Character Limit-20	400004
`pg` `mandatory for seamless/s2s flow`	`String` It defines the payment category and post UPI.	UPI
`bankcode` `mandatory for seamless/s2s flow`	`String` Each payment option is identified with a unique bank code at PayU. For UPI Autopay, post UPI.	UPI
`surl` `mandatory`	`String` The success URL, which is the page PayU will redirect to if the transaction is successful.
`furl` `mandatory`	`String` The Failure URL, which is the page PayU will redirect to if the transaction is failed.
vpa `conditional`	`String` Customer's VPA handle. Mandatory for UPI Collect flow.	`customer@upi`
si `mandatory`	`String` Signifies successful consent taken from the user. Must be `1` for subscription setup.	`1`
si_details `mandatory`	`JSON String` JSON object containing mandate details (billingAmount, billingCurrency, billingCycle, etc.). Refer to si_details JSON Object below.	See si_details accordion
txn_s2s_flow `conditional`	`Integer` Parameter to enable S2S flow. Must be `4` for Legacy Decoupled flow (UPI Intent).	`4`
s2s_client_ip `conditional`	`String` Source IP of the customer. Required for UPI Intent flow.	`10.200.12.12`
s2s_device_info `conditional`	`String` Customer agent's device information. Required for UPI Intent flow.	`Mozilla/5.0 (Windows NT 10.0; Win64; x64)`
`udf1` `mandatory if AD bank request this detail`	`String` This parameter must contain the Buyer's PAN and date of birth in the following format (separated by two pipe characters): Buyer's PAN\\|\\|Buyer'sDOB	AAAPZ1234C\\|\\|22/08/1972
`udf3` `mandatory if AD bank request this detail`	`String` This parameter must contain the invoice ID of the transaction (generated by the merchant) and merchant name in the following format (separated by two pipe characters): Invoice ID\\|\\|MerchantName	INV-123_1231\\|\\|MerchantName
buyer_type_business `optional in case of B2B transaction for cross-border payments`	`Binary` To be sent as "1" in case the buyer is a business. In case of individual buyers, it can be skipped. Default is "0". Note: This will be included in hash if posted (covered in next section	1

Sample Request

curl --location 'https://test.payu.in/_payment' \
--header 'Content-Type: application/x-www-form-urlencoded' \
--data-urlencode 'key=PRiQvJ' \
--data-urlencode 'txnid=my_order_991' \
--data-urlencode 'amount=1' \
--data-urlencode 'productinfo=my_order_991' \
--data-urlencode 'email=' \
--data-urlencode 'phone=9368252248' \
--data-urlencode 'txn_s2s_flow=4' \
--data-urlencode 'hash=||||||ABCDE1234F||1990-01-01||INV123456||||||' \
--data-urlencode 'surl=https://test.payu.in/admin/test_response' \
--data-urlencode 'furl=https://test.payu.in/admin/test_response' \
--data-urlencode 'udf1=buyer'\''s DOB' \
--data-urlencode 'udf2=' \
--data-urlencode 'udf3=buyer'\''s PAN' \
--data-urlencode 'udf4=' \
--data-urlencode 'udf5=invoice number' \
--data-urlencode 's2s_client_ip=10.200.12.12' \
--data-urlencode 's2s_device_info=Mozilla/5.0 (Windows NT 10.0; Win64; x64) PayU-API-Test/1.0' \
--data-urlencode 'firstname=' \
--data-urlencode 'lastname=kr' \
--data-urlencode 'address1=308,third floor' \
--data-urlencode 'address2=testing' \
--data-urlencode 'city=Gurugram' \
--data-urlencode 'state=UP' \
--data-urlencode 'country=India' \
--data-urlencode 'zipcode=122018' \
--data-urlencode 'pg=UPI' \
--data-urlencode 'bankcode=INTENT' \
--data-urlencode 'upiAppName=gpay/phonepe/paytm/qr/amazonpay' \
--data-urlencode 'udf_params={"udf7":"asdf","udf8":"12"}' \
--data-urlencode 'buyer_type_business=1'

Step 2: Retrieve Deeplink(uriIntentData) from the response,

if 'metaData.unmappedStatus = pending', then get the 'result.intentURIData' and add the Generic Intent prefix 'upi://pay?' to it to create a fully qualified deeplink to trigger the UPI App.

{
    "metaData": {
        "message": null,
        "referenceId": "c99a6455b3e0dc5cd7167ab8c8cc10d2fa153cb509e3f64c6cd0ed9c5b64a8c9",
        "statusCode": null,
        "txnId": "my_order_26075",
        "txnStatus": "pending",
        "unmappedStatus": "pending"
    },
    "result": {
        "paymentId": "403993715535965242",
        "merchantName": "Sudhanshu",
        "merchantVpa": "payutest@hdfcbank",
        "amount": "1.00",
        "intentURIData": "pa=payutest@hdfcbank&pn=Kumar&tr=403993715535965242&tid=PPPL403993715535965242080126220900&am=1.00&cu=INR&tn=UPIIntent",
        "acsTemplate": "PGh0bWw+PGJvZHk+PGZvcm0gbmFtZT0icGF5bWVudF9wb3N0IiBpZD0icGF5bWVudF9wb3N0IiBhY3Rpb249Imh0dHBzOi8vdGVzdC5wYXl1LmluL2M5OWE2NDU1YjNlMGRjNWNkNzE2N2FiOGM4Y2MxMGQyYzgzYTk5NmFhNDhiYTk4MmZjMGQ4MTI1MGY1ODgxZjMvaW50ZW50U2VhbWxlc3NIYW5kbGVyLnBocCIgbWV0aG9kPSJwb3N0Ij48aW5wdXQgdHlwZT0iaGlkZGVuIiBuYW1lPSJ0b2tlbiIgdmFsdWU9IjhERDNFRUFFLUI5NTktQzY1RS03MDczLTYzQTNGQUUxMjZGRiI+PGlucHV0IHR5cGU9ImhpZGRlbiIgbmFtZT0iYW1vdW50IiB2YWx1ZT0iMS4wMCI+PGlucHV0IHR5cGU9ImhpZGRlbiIgbmFtZT0ibWlocGF5aWQiIHZhbHVlPSJjOTlhNjQ1NWIzZTBkYzVjZDcxNjdhYjhjOGNjMTBkMmZhMTUzY2I1MDllM2Y2NGM2Y2QwZWQ5YzViNjRhOGM5Ij48aW5wdXQgdHlwZT0iaGlkZGVuIiBuYW1lPSJkaXNhYmxlSW50ZW50U2VhbWxlc3NGYWlsdXJlIiB2YWx1ZT0iMCI+PGlucHV0IHR5cGU9ImhpZGRlbiIgbmFtZT0icGF5ZWVWcGEiIHZhbHVlPSJwYXl1dGVzdEBoZGZjYmFuayI+PGlucHV0IHR5cGU9ImhpZGRlbiIgbmFtZT0icGF5ZWVOYW1lIiB2YWx1ZT0iU3VkaGFuc2h1Ij48aW5wdXQgdHlwZT0iaGlkZGVuIiBuYW1lPSJhZGRpdGlvbmFsQ2hhcmdlcyIgdmFsdWU9IjAiPjxpbnB1dCB0eXBlPSJoaWRkZW4iIG5hbWU9InRyYW5zYWN0aW9uRmVlIiB2YWx1ZT0iMS4wMCI+PC9mb3JtPjxzY3JpcHQgdHlwZT0ndGV4dC9qYXZhc2NyaXB0Jz4KICAgICAgICAgICAgICAgICAgICAgICAgICAgIHdpbmRvdy5vbmxvYWQ9ZnVuY3Rpb24oKXsKICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICBkb2N1bWVudC5mb3Jtc1sncGF5bWVudF9wb3N0J10uc3VibWl0KCk7CiAgICAgICAgICAgICAgICAgICAgICAgICAgICB9CiAgICAgICAgICAgICAgICAgICAgICAgIDwvc2NyaXB0PjwvYm9keT48L2h0bWw+",
        "otpPostUrl": "https://test.payu.in/ResponseHandler.php"
    }
}

Step 3: Generate the QR from the Retrieved Deeplink

Generate the QR from the Deeplink retrieved and show the QR to the customer. After receiving the intentURIData from Step 2 of the UPI Online QR flow, you need to:

Prepend upi://pay? to create the full UPI deeplink
Generate a QR code image from that deeplink
Display the QR code to the customer

Example Response from Step 2

{
    "result": {
        "intentURIData": "pa=payutest@hdfcbank&pn=Kumar&tr=403993715535965242&tid=PPPL403993715535965242080126220900&am=1.00&cu=INR&tn=UPIIntent"
    }
}

Step 4: Verify the payment

Upon receiving the response, PayU recommends you performing a reconciliation step to validate all transaction details. You can verify your payments using either of the following methods:

👉 For more details, refer to Webhooks for Payments.

Updated 10 days ago

Smart Intent Flow

Workflow

Steps to integrate

Specific Intent Flow

Workflow

Steps to Integrate

Android Specific Intent prefix

IOS Specific Intent prefix (Limited availability)

UPI Online QR

Workflow

Steps to Integrate

Example Response from Step 2

EXAMPLE QUESTIONS
