UPI Bolt Capacitor-Ionic-Angular SDK Integration

UPI Bolt UI SDK allows you to manage the checkout options on their checkout screen. You use PayU UPI Bolt UI SDK for customer registration, payment, and profile management. This integration involves the following steps:

Prerequisites

Before integrating PayU UPI Bolt SDK, ensure you have:

iOS deployment target: iOS 17 or higher
Capacitor: Latest stable version
Ionic-Angular: Compatible version
PayU merchant account with valid merchant key
Required permissions for SMS and device access

Step 1: Add SDK Dependency

Add the PayU UPI Bolt Capacitor plugin to your project:

npm add [email protected]

Step 2: Platform-Specific Setup

iOS Setup

Add Dependencies to Podfile

pod 'PayUIndia-UPIBoltCoreKit', '1.0.0-alpha.7'

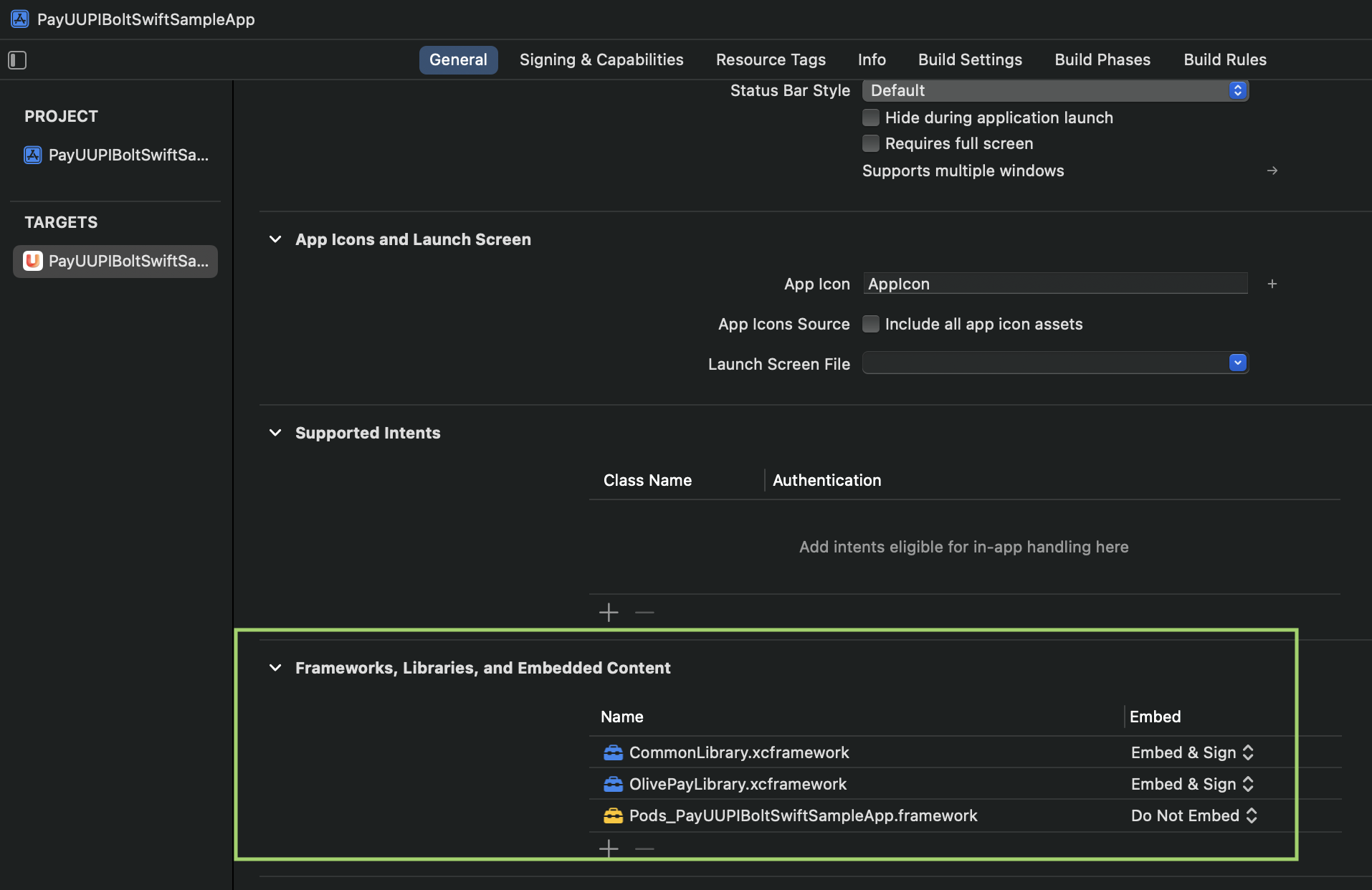

Add Framework Files

Include the following .xcframework files in your iOS project:
- CommonLibrary.xcframework (NPCI)
- OlivePayLibrary.xcframework (AXIS)

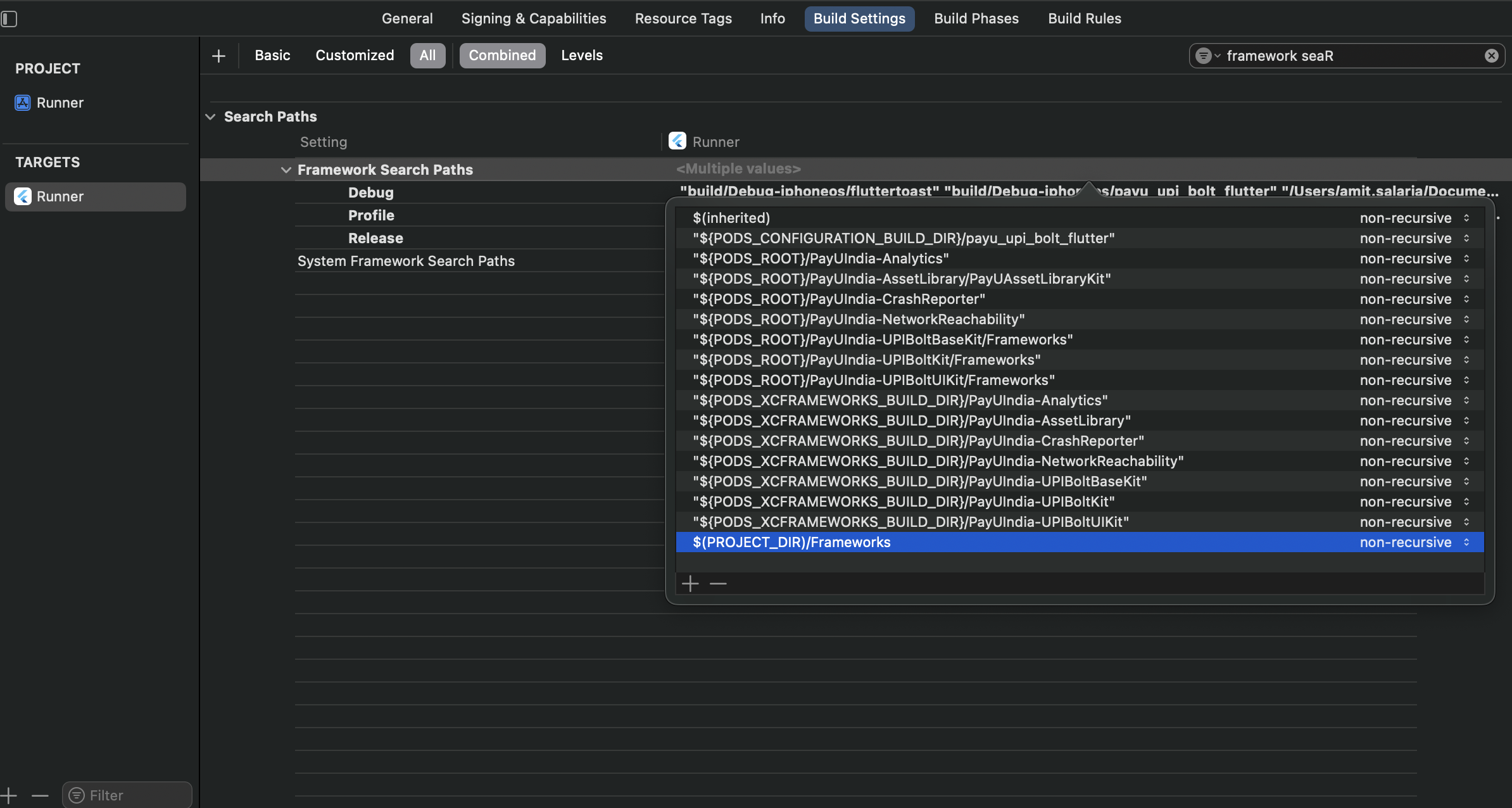

Update Framework Search Path

In Xcode, update the Framework Search Path to:
```
$(PROJECT_DIR)/Frameworks
```

Android Setup

Add Permissions

Add the following permissions to your AndroidManifest.xml:

<uses-permission android:name="android.permission.SEND_SMS"/>
<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
<uses-permission android:name="android.permission.INTERNET" />
<uses-permission android:name="android.permission.READ_PHONE_STATE" />
<uses-permission android:name="android.permission.RECEIVE_SMS" />

Add Dependencies

Add the following dependencies to your build.gradle file:

dependencies {
    implementation 'in.payu:payu-upi-bolt-core-sdk:0.0.1-dev4'
    implementation(files('libs/SecureComponent-release-prod_05062024_9d3904ab.aar'))
}

Add AAR File

Place the SecureComponent-release-prod_05062024_9d3904ab.aar file in the libs folder of your Android app module.

Step 3: Initialize SDK

Initialize the PayU UPI Bolt SDK with your configuration:

import { PayUUPIBoltUICapacitorPlugin } from 'payu-upi-bolt-ui-capacitor';

const config = {
  merchantName: "<merchantName>",
  merchantKey: "<merchantKey>",
  phone: "<phone>",
  email: "<email>",
  refId: "<refId>",
  pluginTypes: ["<pluginType>"], // e.g., ["AXIS", "HDFC"]
  clientId: "<clientId>",
  issuingBanks: ["<issuingBanks>"],
  excludedBanksIINs: ["<excludedBanksIIN>"],
  isProduction: <trueOrFalse>, // true for production, false for staging
};

PayUUPIBoltUICapacitorPlugin.initSDK({ config: JSON.stringify(config) });

// Optional: Clear SDK instance
PayUUPIBoltUICapacitorPlugin.reset();

Configuration Parameters:

Parameter	Description
merchantName `mandatory`	`String` Name of your merchant
merchantKey `mandatory`	`String` PayU merchant key
phone `mandatory`	`String` Phone number for registration
email `mandatory`	`String` Customer Email ID
refId `mandatory`	`String` Reference ID
pluginTypes `mandatory`	`Array<String>` List of Supported Plugin (e.g., [AXIS, HDFC])
isProduction `mandatory`	`Boolean` True (Production), false (Staging)
clientId `optional`	`String` Unique Client ID
issuingBanks `optional`	`Array<String>` List of Issuing Banks
excludedBanksIINs `optional`	`Array<String>` Excluded Bank IINs

Step 4: Check UPI Bolt Availability

Before proceeding with payment flows, verify if UPI Bolt is enabled:

PayUUPIBoltUICapacitorPlugin.isUPIBoltEnabled();

Step 5: Implement Payment Flow

Register and Pay

For first-time users or new transactions:

const paymentParams = {
  amount: "<amount>",
  productInfo: "<productInfo>",
  firstName: "<firstName>",
  surl: "<successUrl>",
  furl: "<failureUrl>",
  ios_surl: "<iosSuccessUrl>",
  ios_furl: "<iosFailureUrl>",
  initiationMode: "<initiationMode>",  // e.g., "10"
  purpose: "<purpose>",              // e.g., "00"
  txnId: "<uniqueTransactionId>",
  isCCTxnEnabled: true               // Enable fallback for card transactions
};

PayUUPIBoltUICapacitorPlugin.registerAndPay({ paymentParams: JSON.stringify(paymentParams) });

Payment Parameters:

Parameter	Description
amount `mandatory`	`String` Transaction amount
txnId `mandatory`	`String` Unique transaction identifier
productInfo `mandatory`	`String` Description of Product
firstName `mandatory`	`String` Customer First Name
surl `optional`	`String` Success Callback URL
furl `optional`	`String` Failure Callback URL
ios_surl `optional`	`String` iOS Success Callback URL
ios_furl `optional`	`String` iOS Failure Callback URL
initiationMode `optional`	`String` Payment initiation mode (e.g., "10")
purpose `optional`	`String` Payment purpose code (e.g., "00")
isCCTxnEnabled `optional`	`Boolean` Enable fallback for card transactions

Step 6: Profile Management

UPI Management Screens

Open various UPI management screens:

PayUUPIBoltUICapacitorPlugin.openUPIManagement({
  screenType: "ALL" // Alternatives: TRANSACTIONHISTORY, MANAGEUPIACCOUNTS, DISPUTE, DEREGISTERUPI
});

Available Screen Types:

Screen Type	Description
ALL	Complete profile management interface
TRANSACTIONHISTORY	Transaction history view
MANAGEUPIACCOUNTS	UPI account management
DISPUTE	Dispute resolution interface
DEREGISTERUPI	Account deregistration

Step 7: Implement Callbacks

Implement the required callback methods:

import { Plugins } from '@capacitor/core';

export class PaymentService {
  private listener = Plugins['PayUUPIBoltUICapacitorPlugin'];

  ngOnInit() {
    this.listener.addListener('onPayUSuccess', (data) => {
      console.log("Transaction Successful:", data);
      this.handlePaymentSuccess(data);
    });

    this.listener.addListener('onPayUFailure', (data) => {
      console.log("Transaction Failed:", data);
      this.handlePaymentFailure(data);
    });

    this.listener.addListener('onPayUCancel', (data) => {
      console.log("Transaction Cancelled:", data);
      this.handlePaymentCancel(data);
    });

    this.listener.addListener('onErrorReceived', (data) => {
      console.log("Error Received:", data);
      this.handleError(data);
    });

    this.listener.addListener('generateHash', (data) => {
      this.handleHashGeneration(data);
    });

    this.listener.addListener('onUPIBoltEnabled', (data) => {
      console.log("UPI Bolt Status:", data);
    });

    this.listener.addListener('onReset', (data) => {
      console.log("SDK Reset:", data);
    });
  }

  ngOnDestroy() {
    this.listener.removeAllListeners(); // Cleanup listeners
  }
}

Callback Methods:

Callback Method	Description
`onPayUSuccess`	Called if payment succeeds
`onPayUFailure`	Triggered on payment failure
`onPayUCancel`	Called when the transaction is cancelled
`onErrorReceived`	Invoked when an error occurs
`onUPIBoltEnabled`	Checks if UPI Bolt is enabled
`onReset`	Confirms SDK has been reset
`generateHash`	Invoked to compute required hash

Step 8: Hash Generation

Implement secure hash generation for transaction security:

async handleHashGeneration(data: HashData): Promise<void> {
  const { hashString, hashName, postSalt } = data;

  // Generate hash on your secure server
  const finalHash = await this.generateSecureHash(hashString + "<salt>" + postSalt);

  const response = { [hashName]: finalHash };
  PayUUPIBoltUICapacitorPlugin.hashGenerated({ hashData: JSON.stringify(response) });
}

private async generateSecureHash(input: string): Promise<string> {
  // Implement SHA-512 hash generation
  // This should be done on your secure server
  return "<SHA-512-Hash>";
}

📘
Note: Always generate hashes on your secure server. Never expose your salt values in client-side code.

SMS Hash Generation for Android

For Android OTP auto-read functionality, add the AppSignatureHelper class to your project:

public class AppSignatureHelper {
    private static final String HASH_TYPE = "SHA-256";
    private static final int NUM_HASHED_BYTES = 9;
    private static final int NUM_BASE64_CHAR = 11;
    private Context context;

    public AppSignatureHelper(Context context) {
        this.context = context;
    }

    public ArrayList<String> getAppSignatures() {
        ArrayList<String> appCodes = new ArrayList<>();
        try {
            String packageName = context.getPackageName();
            PackageManager packageManager = context.getPackageManager();
            Signature[] signatures = packageManager.getPackageInfo(packageName,
                    PackageManager.GET_SIGNATURES).signatures;

            for (Signature signature : signatures) {
                String hash = hash(packageName, signature.toCharsString());
                if (hash != null) {
                    appCodes.add(String.format("%s", hash));
                }
            }
        } catch (PackageManager.NameNotFoundException e) {
            Log.e("AppSignatureHelper", "Unable to find package to obtain hash.", e);
        }
        return appCodes;
    }

    private static String hash(String packageName, String signature) {
        String appInfo = packageName + " " + signature;
        try {
            MessageDigest messageDigest = MessageDigest.getInstance(HASH_TYPE);
            messageDigest.update(appInfo.getBytes(StandardCharsets.UTF_8));
            byte[] hashSignature = messageDigest.digest();

            hashSignature = Arrays.copyOfRange(hashSignature, 0, NUM_HASHED_BYTES);
            String base64Hash = Base64.encodeToString(hashSignature, Base64.NO_PADDING | Base64.NO_WRAP);
            base64Hash = base64Hash.substring(0, NUM_BASE64_CHAR);

            return base64Hash;
        } catch (NoSuchAlgorithmException e) {
            Log.e("AppSignatureHelper", "Hash algorithm does not exist.", e);
        }
        return null;
    }
}

Usage:

Log.d("appSignature", new AppSignatureHelper(requireContext()).getAppSignatures().get(0));

Share the generated signature with PayU team for SMS integration setup.

Error Handling

Handle various error scenarios with these error codes:

Code	Message	Description
`0`	Success	Transaction completed successfully
`1`	Fail/Invalid Response	Request failed due to invalid or missing parameters
`2`	User cancelled	User cancelled the transaction
`100`	Transaction timeout	Transaction exceeded time limit
`104`	UPI Bolt not supported	Feature not available for merchant
`500`	Something went wrong	Unexpected error occurred

Error Handling Example:

handleError(data: any) {
  const errorCode = data.errorCode || -1;
  const errorMessage = data.errorMessage || "Unknown error";

  switch (errorCode) {
    case 100:
      this.showTimeoutError();
      break;
    case 104:
      this.showUPIBoltNotSupported();
      break;
    default:
      this.showGeneralError(errorMessage);
  }
}

Testing

Test Environment Setup

Use Test Configuration
```
isProduction: false
```
Test Phone Numbers
Use sandbox phone numbers provided by PayU for testing
Test Scenarios
- First-time registration and payment
- Repeat payments for registered users
- Error scenarios (network issues, timeouts)
- Profile management flows

Best Practices

📘
Implementation Tips

Always validate user inputs before SDK calls

Implement proper error handling for all callback methods

Use secure hash generation on server-side

Test thoroughly in sandbox environment before production

Handle device permissions gracefully

Implement proper loading states during SDK operations

Always cleanup listeners in ngOnDestroy to prevent memory leaks

SDK Methods Reference

Method	Description	Parameters
`initSDK()`	Initialize the SDK	Configuration object
`isUPIBoltEnabled()`	Check UPI Bolt availability	None
`registerAndPay()`	Register user and process payment	Payment parameters
`openUPIManagement()`	Open profile management screens	Screen type
`hashGenerated()`	Provide generated hash to SDK	Hash object
`reset()`	Reset SDK instance	None

Support

For additional support and documentation:

PayU Developer Portal: https://docs.payu.in
Support Email: [email protected]
Integration Help: Contact your PayU integration manager

💡
Next Steps
After successful integration, consider implementing:

Advanced error handling and retry mechanisms

Analytics tracking for payment flows

Custom UI themes to match your app design

Server-side webhook handling for payment confirmations

Proper lifecycle management for listeners
